Overview

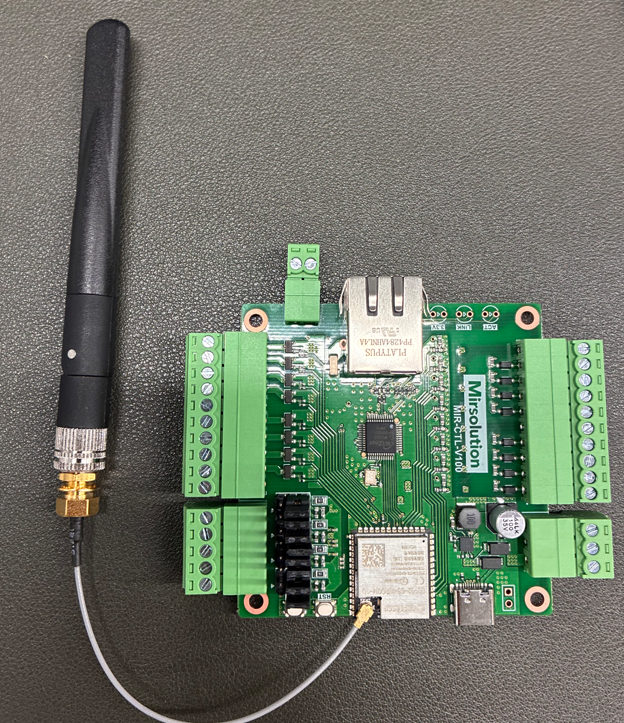

An industrial Ethernet-based I/O controller was developed using ESP32-S3 and WIZnet’s W5500 for applications that require reliable field control and monitoring.

The product was designed with:

• 8-channel DIO
• 8-channel AIO
• 1-channel RS-485
• Ethernet connectivity based on W5500

A particularly distinctive feature of the product is its digital output design using NPN sink-type DO, which makes it well suited for driving field devices such as buzzers, lamps, and door open/close actuators.

By combining flexible I/O expansion, serial field communication, and Ethernet networking in a single embedded platform, this controller provides a practical solution for industrial and facility automation environments.

---

Background

In industrial and facility automation systems, field devices such as sensors, indicators, alarms, and actuators are often distributed across different control points. These environments require a controller that can gather analog and digital signals, communicate with serial equipment, and connect the entire system to Ethernet-based monitoring or control infrastructure.

This creates several practical requirements:

• Support for multiple digital and analog I/O channels
• Reliable control of field devices such as buzzers, lamps, and door actuators
• RS-485 connectivity for industrial serial communication
• Stable Ethernet communication for integration with upper-level systems
• A compact embedded architecture suitable for industrial deployment

To address these needs, the controller was built around ESP32-S3 and W5500, combining local I/O handling with stable network connectivity.

---

Solution

In this product, ESP32-S3 serves as the main control MCU, while W5500 provides Ethernet connectivity for the system.

The controller integrates:

• 8 digital I/O channels
• 8 analog I/O channels
• 1 RS-485 communication channel
• Ethernet networking through W5500

This architecture enables the controller to interface with a wide range of field devices and signals while also supporting network-based communication.

A notable design point is the NPN sink-type digital output. In practical field applications, this output structure is useful for controlling external devices such as:

• Buzzers
• Signal lamps
• Door opening/closing actuators

This makes the product especially suitable for industrial panels, facility control systems, and access-related equipment where external load control is required.

---

System Architecture

The system can be understood as follows:

1. Local Signal Interface

The product collects and manages signals through 8-channel DIO and 8-channel AIO, enabling connection to various digital and analog field devices.

2. Field Serial Communication

A 1-channel RS-485 interface supports communication with serial-based industrial devices or subsystems.

3. Main Control with ESP32-S3

The ESP32-S3 handles system control, I/O processing, and application logic.

4. Ethernet Connectivity with W5500

The W5500 provides Ethernet networking, allowing the controller to connect to upper-level systems for monitoring, control, or data exchange.

5. Field Output Control

The NPN sink-type DO is used to drive external field devices such as buzzers, lamps, and door actuators, making the controller practical for real-world automation use cases.

---

Key Technologies

ESP32-S3

ESP32-S3 provides the processing capability needed for embedded control, I/O handling, and system logic.

W5500

W5500 is WIZnet’s hardwired TCP/IP Ethernet controller, designed to simplify Ethernet connectivity in embedded systems by offloading much of the networking stack into hardware.

Multi-I/O Integration

With DIO, AIO, and RS-485 combined in one product, the controller can interface with a broad range of industrial equipment and field signals.

NPN Sink-Type DO

The use of NPN sink-type digital outputs is an important product characteristic. This structure is especially practical for switching common industrial loads such as alarms, indicator lamps, and door control devices.

---

Benefits

This ESP32-S3 and W5500-based controller provides several advantages:

• Flexible field connectivity
  The combination of DIO, AIO, and RS-485 allows the product to support many different device types and signal formats.
• Reliable Ethernet integration
  W5500 provides a robust wired networking foundation for industrial monitoring and control.
• Efficient embedded design
  ESP32-S3 handles application control, while W5500 manages Ethernet connectivity, creating a practical division of functions.
• Practical output design for real devices
  The NPN sink-type DO makes the controller suitable for real-world loads such as buzzers, lamps, and door actuators.
• Broader application potential
  The mixed I/O structure makes the product adaptable for factory equipment, facility automation, alarm systems, and access-control-related applications.

---

Conclusion

This industrial controller demonstrates how ESP32-S3 and WIZnet’s W5500 can be combined to build a versatile Ethernet-based field control product.

By integrating 8-channel DIO, 8-channel AIO, 1-channel RS-485, and NPN sink-type digital outputs into a single platform, the product is able to support a wide range of practical industrial applications. In particular, its ability to control devices such as buzzers, lamps, and door actuators makes it a strong fit for real-world control environments.

With W5500 providing dependable Ethernet connectivity and ESP32-S3 delivering embedded control flexibility, this solution offers a compact and capable approach for industrial I/O and field automation.
